Paragon Modifications - Jaguar XK8 and XKR Head Unit Surrounds

Head Unit Surrounds

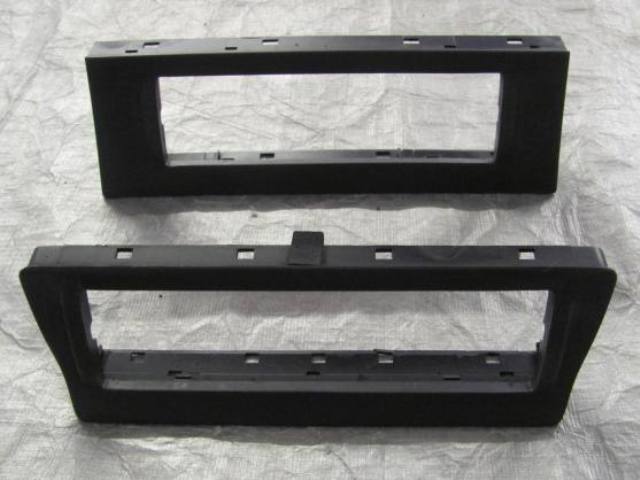

Both early and later type of head unit

We often get asked to make these surrounds for people but the logistics often do not make it viable let alone the cost (£180), so please see below how we produce these items.

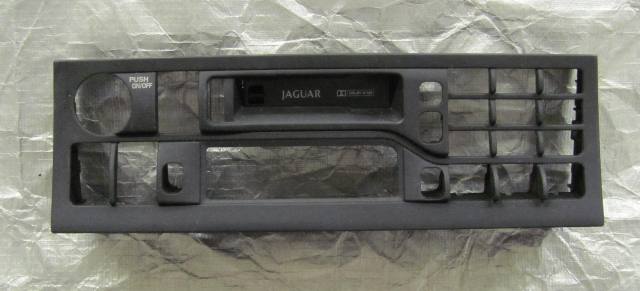

Remove the original head unit and then remove the fascia (2 small screws either side)

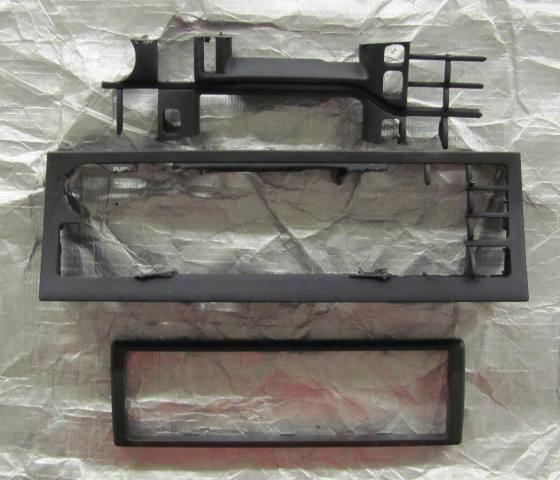

Cut the middle of the fascia out until the new surround just fits in

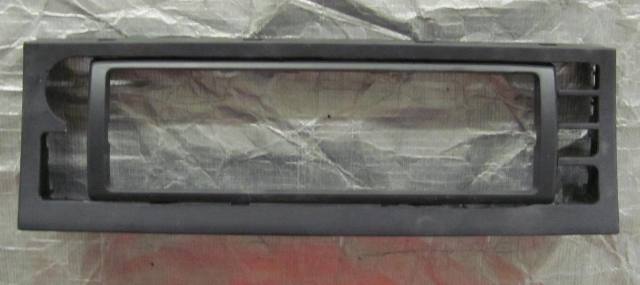

You can hold the surround in place with either some hot melt glue, plasticine, just in a couple of positions

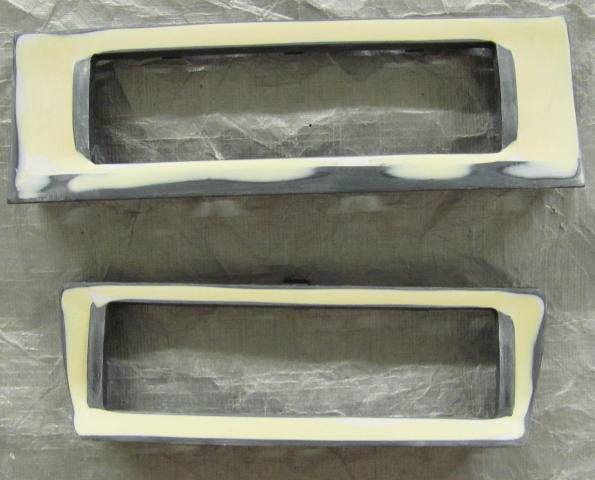

You then fill the gaps with either car body filler or epoxy resin and shape to a smooth finish

Paint in satin black to match the centre console instrument pack

Takes roughly 3 hours to produce

	Remove the original head unit and then remove the fascia (2 small screws either side)
Cut the middle of the fascia out until the new surround just fits in
	You can hold the surround in place with either some hot melt glue, plasticine, just in a couple of positions
You then fill the gaps with either car body filler or epoxy resin and shape to a smooth finish
	Paint in satin black to match the centre console instrument pack
